產品特點 | Feature
stainless steel
Full seal, laser welding
Higher overload protection
Suitable for use in limited space
不銹鋼材質
全密封，激光焊接
更高的過載保護能力
適用于空間有限的場合使用
量程 | Capacities
5kg 10kg 20kg 50kg 100kg 200kg 500kg 1t
客戶可以根據自己需求定制量程。
技術參數 | Specification
|
Rated Output |
額定輸出 |
2.0mV/V±1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕變 |
±0.03% of rated output |
|
Nonlinearity |
非線性 |
±0.3% of rated output |
|
Hysteresis |
滯后 |
±0.03% of rated output |
|
Repeatability |
重復性 |
±0.3% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.03% of applied output/℃ |
|
Temp. Effect on zero |
零點溫漂 |
≤0.03% of rated output/℃ |
|
Safe temp. Range |
可用溫度范圍 |
-20℃ to+70℃ |
|
Temp.Compensated |
溫度補償范圍 |
-10℃ to+30℃ |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
365 Ω±20Ω |
|
Output Impedance |
輸出阻抗 |
350 Ω±5Ω |
|
Insulation Resistance |
絕緣阻抗 |
≥5000MΩ(50V DC) |
|
Rated Excitation |
推薦激勵電壓 |
5V DC/AC |
|
Maximum Excitation |
最大工作電壓 |
10V DC/AC |
|
Protection Class |
防護等級 |
IP67 |
|
Construction |
電線 |
2m |
|
type |
型號說明 |
?型號+‚量程+ƒ非標功能F(無非標則不需填寫) 如：LSZ-F02F/3kg |
|
Cable Color Code |
導線顏色 |
Red(+E)Black(-E)Green(+S)White(-S) |

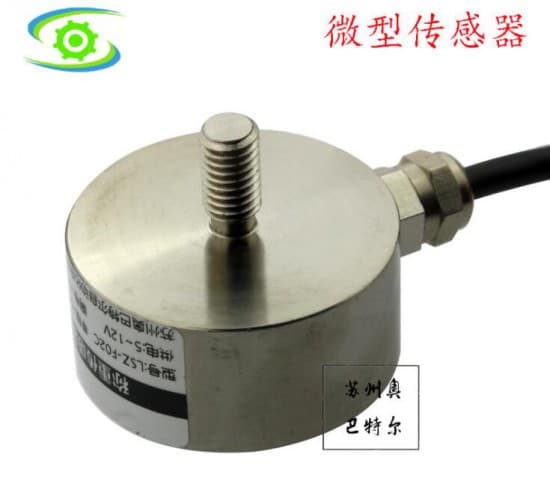

點擊圖片查看原圖
